Create Security Groups

Create Security Layers (Security Group)

ℹ️ Objective

  • A Security Group acts as a virtual firewall at the instance level to control inbound and outbound traffic.
  • In this section, we will create 2 separate Security Groups for the two core components in our architecture:
    1. Web Server (ors-sg): Receives traffic from users and allows administrators to connect.
    2. Database (ors-db-sg): Only allows connections from the Web Server and administrators, ensuring absolute data security.

🔒 Steps to Follow

1. Create Security Group for the Web Server (ors-sg)

This is the security layer for the EC2 instances that will run the Node.js backend application.

  • Step 1: Start creating a Security Group

    • From the VPC Dashboard interface, select Security Groups from the left menu.
    • Click on Create security group.

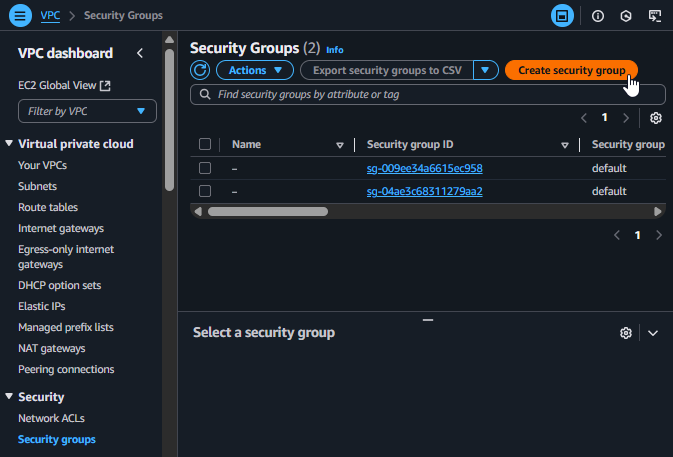

    Create a new Security Group

  • Step 2: Configure basic information

    • Security group name: ors-sg
    • Description: Security group for Online Restaurant Web Server
    • VPC: Select the ors-vpc VPC created in the previous step.

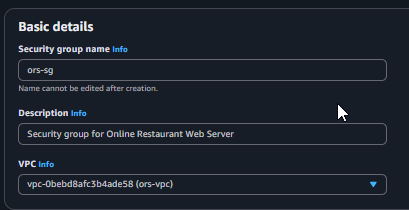

    Basic information for the Web Server SG

  • Step 3: Set up Inbound Rules

    • In the Inbound rules section, click Add rule and configure the following 4 rules:
TypeProtocolPort rangeSourceDescription
SSHTCP22My IPAllows you to connect via SSH from your current IP to manage the server.
HTTPTCP80Anywhere-IPv4Allows users to access the web server via HTTP.
HTTPSTCP443Anywhere-IPv4Allows users to access securely via HTTPS.
Custom TCPTCP5000Anywhere-IPv4Opens the port for the Node.js application (for testing and load balancing).

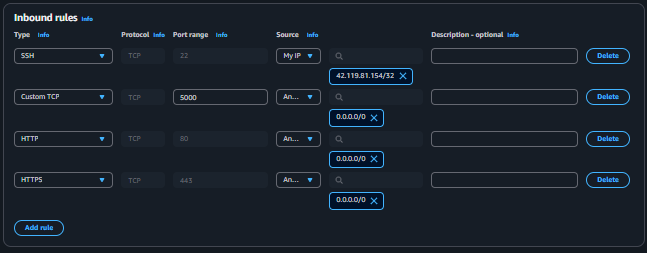

Configure Inbound Rules for the Web Server SG

When selecting My IP as the Source, AWS will automatically fill in your public IP address. This enhances security by only allowing administrators to access from a trusted location.

  • Step 4: Scroll to the bottom and click Create security group.

2. Create Security Group for the Database (ors-db-sg)

This security layer is designed to “lock down” the database, allowing only absolutely necessary connections.

  • Step 1: Configure basic information

    • Click Create security group again.
    • Security group name: ors-db-sg
    • Description: Security group for Online Restaurant Database
    • VPC: Select the ors-vpc VPC.

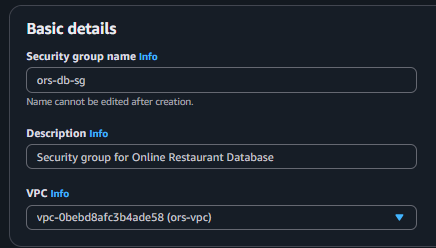

    Basic information for the Database SG

  • Step 2: Set up Inbound Rules

    • Click Add rule and configure the following 2 rules:
TypeProtocolPort rangeSourceDescription
MYSQL/AuroraTCP3306Custom -> ors-sgImportant: Only allows web servers (belonging to ors-sg) to connect to the DB.
MYSQL/AuroraTCP3306My IPAllows you to connect to the DB from your personal machine for management (e.g., using MySQL Workbench).

Important Security Principle: By selecting another Security Group (ors-sg) as the Source, we create a dynamic rule. Any server belonging to ors-sg can connect to the database without needing to specify a particular IP address. This is the best practice for security in a cloud environment.

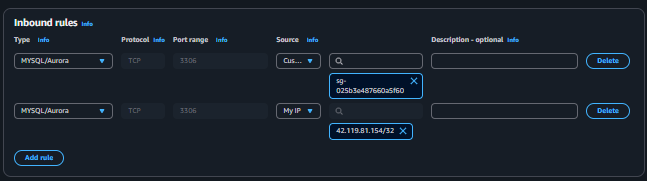

Configure Inbound Rules for the Database SG
  • Step 3: Click Create security group.

After completion, you will have 2 correctly configured Security Groups ready to protect your project’s resources.
